CPU Heat Sink: How It Works, Types, Materials, and Selection Guide
A CPU heat sink is one of the most important thermal management components in a computer or electronic system. Its job is simple in principle: move heat away from the processor and release that heat into the surrounding air or another cooling medium.
In practice, however, CPU cooling is much more complex.
Processor power density continues to increase, while computer systems are expected to become smaller, quieter and more efficient. This means a CPU heat sink must balance several factors at the same time, including thermal conductivity, fin area, airflow, installation space, mounting pressure and cost.
For PC manufacturers, server companies, industrial computer suppliers and embedded system developers, choosing the right CPU heat sink can directly affect system stability, processor performance and product reliability.
This guide explains how CPU heat sinks work, the major types available, common materials and structures, and the key factors to consider when selecting or designing a cooling solution.
What Is a CPU Heat Sink?

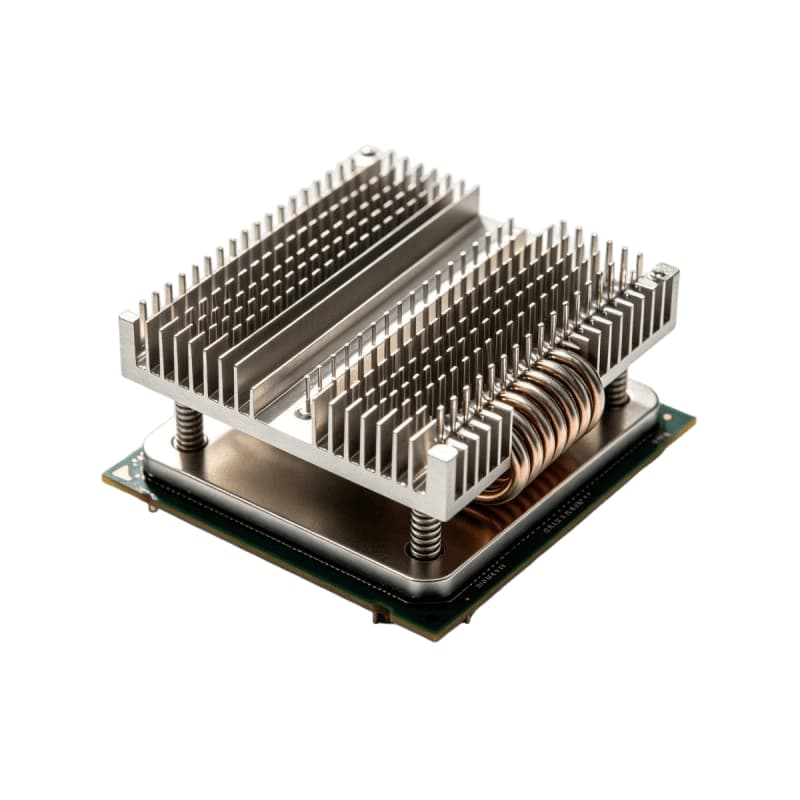

A CPU heat sink is a thermal component mounted directly or indirectly onto a processor.
Its primary function is to transfer heat from the CPU into a larger surface area where the heat can be released more efficiently.
The basic thermal path is:
CPU → Thermal Interface Material → Heat Sink Base → Fins → Air
Without a heat sink, heat generated by the CPU would remain concentrated around the processor package. As temperature rises, the processor may reduce clock speed, become unstable or shut down to protect itself.
By increasing the available surface area for heat dissipation, a heat sink allows the thermal energy to move away from the processor much faster.
How Does a CPU Heat Sink Work?
CPU heat sinks rely mainly on three heat-transfer mechanisms:
Conduction
Heat first moves from the CPU into the heat sink base through direct contact.
A layer of thermal interface material is normally placed between the CPU and heat sink to fill microscopic surface gaps and improve heat transfer.
The heat then travels through the metal structure by conduction.
Heat Spreading
Once heat enters the base, it must be distributed over a larger area.
Copper bases and heat pipes are often used in higher-performance designs because they can spread concentrated processor heat more efficiently.
Convection
Heat reaches the fins and is then transferred into the surrounding air.
In a passive cooling system, natural airflow removes this heat.
In an active CPU cooler, a fan forces air through the fin structure and significantly increases the rate of heat dissipation.
CPU Heat Sink Materials
Material selection has a major impact on heat sink performance, weight and cost.
| Material | Thermal Performance | Weight | Cost | Typical Use |
|---|---|---|---|---|
| Aluminum | Good | Low | Lower | General CPU cooling |
| Copper | Excellent | High | Higher | High-performance bases and heat spreaders |
| Copper + Aluminum | Very good | Medium | Medium | High-performance CPU coolers |
| Graphite or advanced materials | Application-specific | Varies | Higher | Specialized thermal applications |
For most CPU cooling applications, aluminum and copper remain the dominant materials.
CPU Heat Sink Manufacturing Methods
Different heat sink structures require different manufacturing processes.
Common methods include:
Extrusion
Extruded aluminum heat sinks are cost-effective and suitable for medium fin densities and repeatable production.
Skiving
Skived heat sinks create very thin fins directly from a metal base.
This method is useful when:
High fin density is required
Thermal contact between base and fins must be minimized
Space is limited
Stamping
Stamped fins are formed separately and then assembled into a fin stack.
This approach can support complex fin structures and high-volume manufacturing.
Bonded Fin
Individual fins are bonded or mechanically attached to a base.
This allows greater flexibility in fin height and spacing.
CNC Machining
Machining is useful for custom bases, low-volume parts, prototypes and complex mounting features.
Heat Pipe Assembly
Heat pipes may be soldered, pressed or otherwise integrated into the base and fin stack.
The assembly method affects thermal contact quality and production consistency.
Custom CPU Heat Sink Development
For OEM projects, standard heat sinks may not match the platform.
A custom CPU heat sink can be developed around:
Specific CPU model
Board layout
Heat load
Chassis dimensions
Airflow
Mounting structure
Target cost
Production quantity
Jadecooling Tech supports custom CPU cooling component development from drawings, 3D models, motherboard layouts and existing samples.
A typical development process includes:
Thermal requirement review
Mechanical envelope evaluation
Material and heat sink structure selection
Heat pipe and fin design
Mounting design
Prototype manufacturing
Thermal and mechanical validation
Design optimization
Batch manufacturing
This approach is useful for hardware manufacturers developing products that cannot accommodate standard retail cooling components.
Frequently Asked Questions
What is the main purpose of a CPU heat sink?
A CPU heat sink removes heat from the processor and distributes it across a larger surface area so the heat can be released into the surrounding environment.
Is copper better than aluminum for CPU heat sinks?
Copper has higher thermal conductivity, but it is heavier and more expensive. Many high-performance CPU heat sinks use a copper base and heat pipes combined with aluminum fins.
How many heat pipes does a CPU heat sink need?
There is no fixed number. The correct quantity depends on CPU heat load, heat pipe diameter, fin structure, cooler size and airflow.
What is a low-profile CPU heat sink?
A low-profile CPU heat sink is designed for systems with limited vertical space, such as compact PCs, embedded computers and rack servers.
Can a CPU heat sink work without a fan?
Yes. Passive CPU heat sinks can work without a dedicated fan when processor heat output and system airflow allow sufficient natural or chassis-assisted cooling.
Why are fins used on a CPU heat sink?
Fins increase the surface area exposed to air, allowing heat to dissipate more efficiently.
Does a larger CPU heat sink always cool better?
Not necessarily. Performance depends on heat transfer, fin spacing, airflow, base design and mounting quality. A very large heat sink with poor airflow may perform worse than a smaller optimized design.
Can CPU heat sinks be customized?
Yes. Dimensions, materials, fins, heat pipes, mounting structures and surface treatments can all be customized for specific processors and hardware platforms.
